Understanding 32A Flush Plot DP Switch Without Link: Complete Guide for Indian Electricians and Builders
When it comes to electrical installations in residential and commercial spaces across India, selecting the right switches and switchgear is crucial for safety, durability, and compliance with Indian Standards. One component that often confuses both professionals and homeowners is the 32A flush plot DP (Double Pole) switch without link, particularly models like the Ivory 5070IV variant with code 254610. This comprehensive guide will help you understand what this switch is, why it matters, and how to choose the right one for your project.
Build cost · Bengaluru, May 2026
What is a 32A Flush Plot DP Switch?
A 32A DP switch is a double-pole electrical switch designed to control circuits carrying up to 32 amperes of current. The term "flush plot" refers to the installation method—these switches are mounted flush with the wall surface, sitting within a recessed box rather than protruding outward. This design is the standard in most Indian homes and commercial buildings.
The "DP" designation means the switch has two poles, allowing it to simultaneously break both the live (L) and neutral (N) wires of a circuit. This is particularly important for safety in Indian electrical systems, as it ensures complete circuit isolation when the switch is turned off.
Understanding "Without Link" Configuration
The "without link" specification is an important technical detail that many installers overlook. When a DP switch is manufactured "without link," it means the two poles operate independently. This contrasts with linked switches, where both poles are mechanically connected and move together.
For most residential applications in India, a without link configuration is preferred because:
It provides independent control of each pole if needed
It allows for more flexible wiring arrangements
It meets the requirements of Indian Standard IS 1293:2017, which governs general purpose switches
It's typically more cost-effective than linked variants

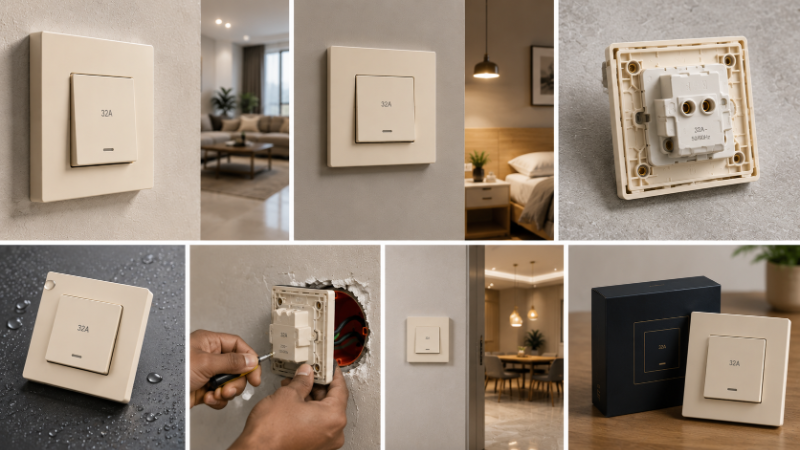

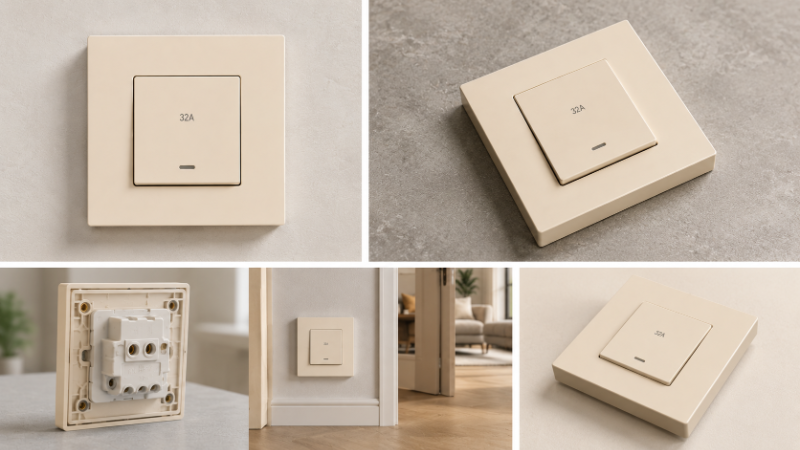

Specifications of the Ivory 5070IV Model (Code 254610)
The Ivory 5070IV switch with code 254610 is a popular choice in the Indian market. Here are its key specifications:
Rated Current: 32 Amperes
Rated Voltage: 250V AC (suitable for Indian standard 230V supply)
Type: Flush mounted DP switch
Color: Ivory (a neutral, professional finish)
Material: High-quality plastic with brass/copper contacts
Configuration: Without link (independent pole operation)
Certification: Typically ISI marked for Indian compliance
The ivory finish is particularly popular in Indian homes as it complements most interior designs and doesn't show dust as easily as white finishes. The model code 254610 helps electricians and builders quickly identify this specific variant when ordering from suppliers or comparing prices across different vendors.
Frequently asked
Why Choose a 32A DP Switch for Your Electrical Installation?
Safety Considerations
Safety is paramount in electrical installations. A 32A DP switch without link provides several safety advantages:
First, the double-pole design ensures that when you switch off the circuit, both the live and neutral conductors are disconnected. This is crucial for safety during maintenance work, as it prevents accidental contact with live conductors.
Second, the 32A rating makes it suitable for circuits carrying substantial loads—typical for kitchen appliances, water heaters, air conditioning units, and other high-power devices commonly used in Indian homes. Using an appropriately rated switch prevents overheating and potential fire hazards.
Third, ISI-certified switches like the Ivory 5070IV model have undergone rigorous testing to ensure they meet Indian safety standards. When purchasing electrical components, always verify the ISI mark to ensure compliance with IS 1293:2017 and other relevant Indian Standards.
Applications in Indian Homes and Buildings
The 32A flush plot DP switch is ideal for controlling:
Water heater circuits: Most electric water heaters in India operate at 15-32 amps
Air conditioning units: Split ACs typically draw 10-20 amps, making a 32A switch appropriate
Kitchen appliances: Microwave ovens, electric cookers, and dishwashers often require 32A circuits
Submersible pump circuits: Common in Indian homes for water supply management
Electric vehicle charging points: As EV adoption grows in India, 32A circuits are becoming increasingly relevant
Heater circuits: Essential for many Indian homes during winter months
Installation Guidelines for 32A DP Switches
Preparation and Planning
Before installing a 32A flush plot DP switch, proper planning is essential. Determine the circuit load by calculating the total wattage of devices that will be connected to that switch. Divide the total wattage by 230V (standard Indian voltage) to get the amperage.
For example, if you're installing a circuit for a 3000W water heater:
Current (Amps) = Power (Watts) ÷ Voltage = 3000W ÷ 230V ≈ 13 Amps
This would comfortably fit within a 32A switch's capacity with safety margin. However, always consult with a licensed electrician familiar with Indian electrical codes to ensure your specific installation meets all requirements.
Wiring and Connection
Proper wiring is critical for safe operation. The switch should be connected with appropriate gauge wiring—typically 4mm² or 6mm² copper wire for 32A circuits, depending on the circuit length and local regulations.
The wiring color code in India follows these standards:
Red or Brown: Live (L) wire
Black or Blue: Neutral (N) wire
Green or Green-Yellow: Earth (E) wire
For a DP switch without link, both the live and neutral wires must be connected to the two poles of the switch. The earth wire should never pass through the switch—it should be connected directly to the appliance or through an appropriate earth connection.
Box Selection and Mounting
Flush plot switches require appropriate flush boxes (also called modular boxes or pattresses). These boxes are recessed into the wall during construction. Ensure the box dimensions accommodate the switch module—typically, a standard flush box measures approximately 80mm x 80mm for single-gang switches.
The depth of the box should be sufficient to accommodate the switch and any wiring connections, usually 40-50mm. Using AECORD's network of electrical professionals, you can find experienced electricians in your area who understand local building codes and can recommend the right components for your specific installation.
Cost Considerations in the Indian Market
Pricing Overview
The cost of a 32A flush plot DP switch without link varies depending on brand, quality, and location within India. Generally, you can expect:
Budget options: ₹150-250 per switch
Mid-range options (like Ivory 5070IV): ₹250-400 per switch
Premium branded options: ₹400-600 per switch
While the price difference might seem small, investing in quality switches from reputable manufacturers is worthwhile. A cheaper switch might fail after a few years, requiring replacement and potential disruption to your electrical system.
Factors Affecting Cost
Several factors influence the final cost of electrical switches in India:
Brand reputation: Established brands typically command higher prices due to quality assurance
Finish quality: Ivory finishes like the 5070IV model are often priced higher than basic white options
Location: Prices vary between metropolitan areas (Delhi, Mumbai, Bangalore) and smaller cities
Bulk orders: Contractors and builders can negotiate better rates for large quantities
Installation labor: Professional installation typically costs ₹100-300 per switch, depending on local rates
Compliance with Indian Standards and Regulations
Relevant Indian Standards
When selecting a 32A DP switch, ensure it complies with these Indian Standards:
IS 1293:2017: General purpose switches for household and similar electrical installations
IS 1293:2017 (Part 2): Electronic switches and dimmer switches
IS 9696: Safety of household and similar electrical appliances
National Electrical Code (NEC): While primarily American, many Indian builders reference this for guidance
Always look for the ISI mark on the switch packaging and product itself. This mark indicates that the product has been tested and certified by the Bureau of Indian Standards.
Building Bye-Laws and Local Regulations
Different Indian cities have specific building codes. For instance:
Mumbai: Follows the Mumbai Building Bye-Laws, which specify electrical installation requirements
Delhi: Governed by the Delhi Building Bye-Laws
Bangalore: Follows the Bangalore City Corporation regulations
Hyderabad: Regulated by the Greater Hyderabad Municipal Corporation (GHMC)
Always consult with local authorities or a qualified electrical contractor before finalizing your electrical design. Professionals listed on AECORD can help ensure your installation meets all local requirements.
Comparing Switch Options: DP vs. SP Switches
When to Use DP Switches
Double-pole (DP) switches are superior to single-pole (SP) switches for most applications because they disconnect both live and neutral wires. This is the recommended practice in modern electrical installations.
Use a 32A DP switch without link when:
Installing circuits for high-power appliances
Prioritizing safety and complete circuit isolation
Meeting modern Indian electrical standards
Installing in new buildings or major renovations
Single-Pole Switch Limitations
While single-pole switches are cheaper and still found in older Indian homes, they only disconnect the live wire. If maintenance is needed, the neutral wire remains connected, creating a potential safety hazard. Modern practice strongly favors DP switches for this reason.
Maintenance and Longevity
Expected Lifespan
A quality 32A DP switch like the Ivory 5070IV model typically lasts 10-15 years with proper maintenance. Factors affecting lifespan include:
Frequency of use
Load consistency (avoiding frequent overloads)
Environmental conditions (humidity, temperature fluctuations)
Manufacturing quality
Maintenance Tips
To extend the life of your switches:
Keep switches clean: Dust accumulation can affect performance. Wipe with a dry cloth regularly
Avoid moisture: In bathrooms and kitchens, ensure adequate ventilation to prevent moisture damage
Don't overload: Avoid running appliances that exceed the switch's rated capacity
Check for loose connections: Periodically inspect switch connections for signs of loosening or corrosion
Replace worn switches: If a switch becomes difficult to operate or shows signs of damage, replace it promptly
Finding Quality 32A DP Switches and Professional Installation
Where to Source Components
Quality electrical components are available from:
Authorized dealers of major electrical brands
Building material suppliers in your city
Online platforms specializing in electrical goods
Wholesale suppliers for bulk orders
Always verify product authenticity and ISI certification before purchasing. Counterfeit electrical components are a significant problem in India and can compromise safety.
Professional Installation Services
While installation might seem straightforward, hiring a qualified electrician ensures:
Compliance with all Indian Standards and local building codes
Proper circuit design and load calculations
Safe wiring practices and connections
Warranty and liability protection
Inspection and certification of the installation
Through AECORD, you can connect with experienced electrical contractors in your area who specialize in residential and commercial installations. These professionals understand the nuances of Indian electrical standards and can recommend the best components for your specific needs.
Conclusion
The 32A flush plot DP switch without link, exemplified by models like the Ivory 5070IV (code 254610), represents the modern standard for electrical installations across India. Its double-pole design ensures complete circuit isolation, making it the safer choice compared to older single-pole alternatives. Whether you're building a new home in Bangalore, renovating an apartment in Mumbai, or setting up a commercial space in Delhi, choosing the right switches is fundamental to creating a safe, compliant, and durable electrical system.
Understanding the specifications, applications, and installation requirements of these switches empowers you to make informed decisions about your electrical infrastructure. Remember to always prioritize quality, verify ISI certification, and work with qualified professionals who understand local regulations.
Ready to upgrade your electrical installation with quality components and professional expertise? Visit AECORD today to find certified electricians, contractors, and electrical suppliers in your city. Whether you need advice on component selection, professional installation services, or ongoing electrical maintenance, AECORD connects you with trusted AECO professionals who understand the Indian market and can deliver solutions tailored to your specific requirements. Browse our directory of verified professionals and get your electrical project completed to the highest standards.
Frequently Asked Questions
What does DP mean in a 32A flush plot DP switch?
DP stands for Double Pole, meaning the switch has two poles that simultaneously break both the live (L) and neutral (N) wires of a circuit. This ensures complete circuit isolation when the switch is turned off, providing enhanced safety during maintenance work.
What is the difference between a DP switch with link and without link?
A DP switch without link means the two poles operate independently, while linked switches have both poles mechanically connected and move together. The without link configuration provides more flexible wiring arrangements and is typically more cost-effective.
Is a 32A DP switch suitable for kitchen appliances and water heaters?
Yes, the 32A rating makes it ideal for circuits carrying substantial loads like kitchen appliances, water heaters, air conditioning units, and other high-power devices commonly used in Indian homes. It ensures safe operation for these demanding electrical loads.
What does flush plot mean for electrical switches?
Flush plot refers to the installation method where switches are mounted flush with the wall surface, sitting within a recessed box rather than protruding outward. This is the standard design in most Indian homes and commercial buildings.
Is the Ivory 5070IV switch ISI marked and compliant with Indian standards?
Yes, the Ivory 5070IV (code 254610) is typically ISI marked and meets the requirements of Indian Standard IS 1293:2017, which governs general purpose switches. It's rated for 250V AC, suitable for India's standard 230V supply.
